380V 7Kw Full-Automatic Stator Winding Machine with 12 Months Warranty for High Efficiency Washing Machine Manufacturing
ملخص المنتج
2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head This machine features two winding heads with four working stations, capable of simultaneously winding main and auxiliary phases. Designed for high production capacity applications, it ...
سمات المنتج المخصصة
اسم:
آلة متعرج كهربائي لثابت
سرعه السلك:
≤3000r/دقيقة
رقم التحويل:
2-6 قطع
مزود الطاقة:
380V/50/60Hz 7KW
حالة:
جديد
ضمان:
12 شهرا
لف الرأس:
1pcs
أقصى ارتفاع للمكدس:
≤70mm
الحياة العفن:
> 1،000،000 طلقة
الصف التلقائي:
كامل التلقائي
إبراز:
380V Stator Winding Machine,7Kw Automatic Stator Winding Machine,12 Months Warranty Electrical Winding Machine
,7Kw Automatic Stator Winding Machine
,12 Months Warranty Electrical Winding Machine
الخصائص الأساسية
مكان المنشأ:
الصين
اسم العلامة التجارية:
SMT
إصدار الشهادات:
ISO9001/SGS/CE
رقم الموديل:
SMT-SLR150
تداول العقارات
الحد الأدنى لكمية:
1 مجموعة
الأسعار:
قابل للتفاوض
تفاصيل التغليف:
حافظة خشبية مناسبة للنقل البحري.
وقت التسليم:
80 - 100 يوم لمدة 1 مجموعة
شروط الدفع:
T/T ، L/C.
القدرة على العرض:
2pcs/ 56 - 80 يومًا
وصف المنتج

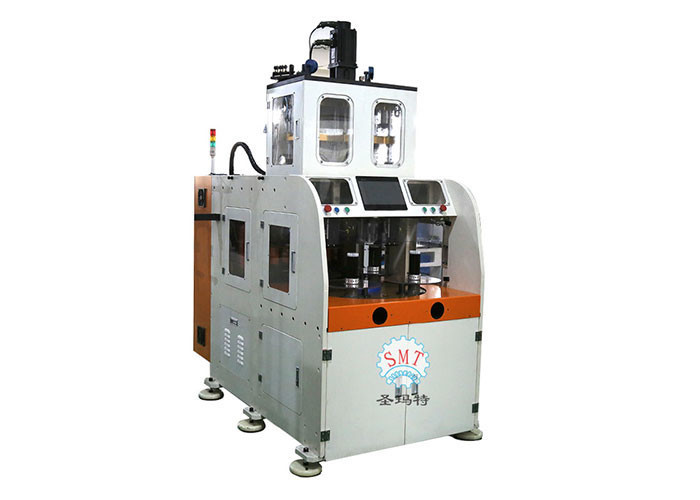

2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head
This machine features two winding heads with four working stations, capable of simultaneously winding main and auxiliary phases. Designed for high production capacity applications, it achieves high slot filling rates and is particularly suitable for stators with small slot openings. Operation modes including auto skip, auto cutting, and auto indexing can be selected via the touch screen interface.
Main Technical Data
| Model | SMT-LR100 | SMT-LR150I | SMT-LR150 II | SMT_LR200 | SLR70 | QLR70 |
|---|---|---|---|---|---|---|
| Winding Head | 1 | 1 | 1 | 1 | 2 | 4 |
| Wire Diameter(mm) | 0.3~1.0 | 0.3~1.0 | 0.3~1.2 | 0.3~1.2 | 0.2~1.0 | 0.2~1.0 |
| Unload Speed | ≤2500r/min | ≤2500r/min | ≤2500r/min | ≤2000r/min | 3000 | 3000 |
| Stack Height | ≤80mm | ≤120mm | ≤150mm | ≤230mm | ≤70mm | ≤70mm |
| Winding Precision | + 0 | + 0 | + 0 | + 0 | + 0 | + 0 |
| Power Supply | 380v/50/60HZ 8Kw | 8Kw | 9Kw | 7Kw | 7Kw | 7Kw |
| Air Pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6pa | ≥0.6pa |
| Weight | ≈1350Kg | ≈1600Kg | ≈1600Kg | ≈2200Kg | ≈1950Kg | ≈2300Kg |
| Dimension (L×W×Hcm) | 180×110×200 | 180×120×220 | 180×130×230 | 220×180×250 | 180×130×205 | 135×100×180 |
Key Features
- Double winding heads with turntable design for efficient operation
- Servo-controlled main spindle with ±1 turn accuracy
- PLC-controlled parameters including turn number, winding speed, and tension
- Supports both continuous and discontinuous winding methods
- Capable of handling 2, 4, and 6 pole coils
- Tooling change can be completed in approximately 15 minutes
- Automatic wire detection with machine stop function
- Low vibration and noise operation
- Touch screen interface for easy operation and monitoring
Applications
This automatic stator winding machine is ideal for manufacturing single-phase induction motors and three-phase motors. It is widely used in household appliance production including washing machines, fans, refrigerators, air conditioners, vacuum cleaners, and various personal care appliances.
Maintenance Guidelines
- Conduct pre-operation checks of mechanical, electrical, and hydraulic components
- Clean dust and reset machine after each use
- Clean electrical components every three months
- Regularly check and maintain hydraulic system filters and lubricators
- Inspect guide mechanism lubrication status
- Check magnet valve screws and pipe joints quarterly
- Inspect filters and air filters every two months
- Annual air pressure check recommended
- Regular mechanical oil application required
