AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw
ملخص المنتج
AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding applications including alternators, servo motors, and three phase motors. The machine features a specialized controller ...
سمات المنتج المخصصة
3 phase stator winding machine,220V stator winding machine,7Kw stator winding machine
,220V stator winding machine
,7Kw stator winding machine
الخصائص الأساسية
تداول العقارات
وصف المنتج

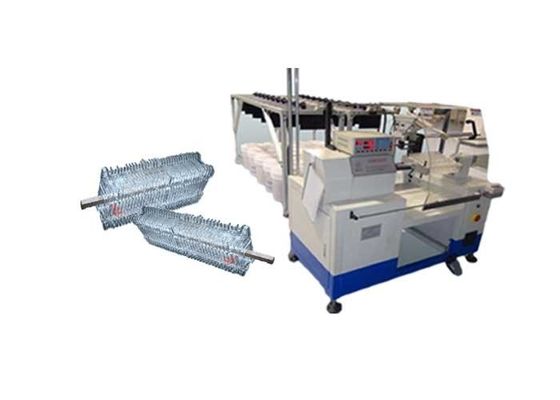

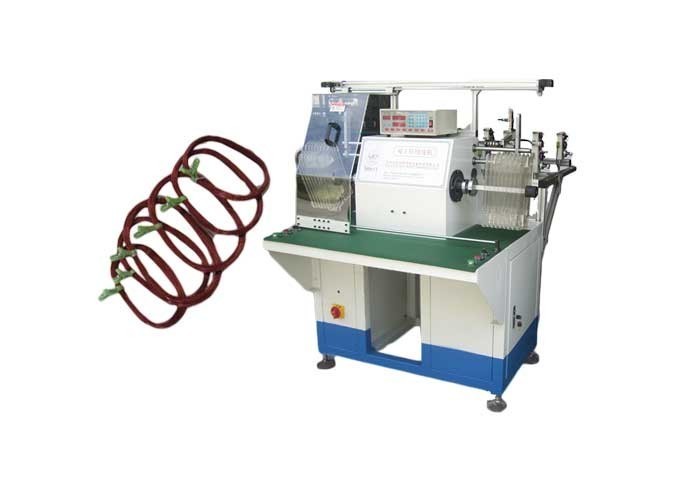

Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding applications including alternators, servo motors, and three phase motors. The machine features a specialized controller with programmable functions for arraying direction, winding start point, slow starting/ending, side stops, auto width adjustment, and auto reset.
| Parameter | Value |
|---|---|
| Swing diameter | ≤350mm |
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
- Specialized design for multiple wire parallel coil winding
- Advanced controller with programmable winding parameters
- Significant labor and cost savings
- Precision winding capabilities for alternators, servo motors, and three phase motors
- Versatile application across different motor types
- User-friendly operation and easy tooling changes
- Customizable solutions available
- Global support with overseas service centers
- Proven track record in international markets including USA, Europe, and South America
