Horizontal Stator Winding Inserting Machine for Compressor and Industry Motors with 60-150mm Stator I.D
-
إبراز
60-150mm Stator I.D Stator Winding Inserting Machine,Compressor Motor Application Stator Winding Inserting Machine,Industry Motor Application Stator Winding Inserting Machine
,Compressor Motor Application Stator Winding Inserting Machine
,Industry Motor Application Stator Winding Inserting Machine
-
اسملفائف متعرج محرك الضاغط في الآلة الأفقية لإدراج ملفات متعرج وورق
-
نموذجSMT-QX08
-
معرف الجزء الثابت≥φ60mm
-
الجزء الثابت O.D≤Φ210 مم
-
طريقة التشغيلأفقي
-
سلكCu / Al
-
طلبمحرك الضاغط/الصناعة
-
OEMنعم
-
مكان المنشأالصين
-
اسم العلامة التجاريةSMT
-
إصدار الشهاداتISO / BV / SGS
-
رقم الموديلSMT-QX08
-
الحد الأدنى لكمية1 مجموعة
-
الأسعارقابل للتفاوض
-
تفاصيل التغليفيتم تعبئة آلة إدخال الملف مع حالات الخشب الرقائقي. بُعدها وفقًا للجهاز وحجم الأجزاء الأخرى.
-
وقت التسليم60 أيام العمل بعد تقديم الطلب
-
شروط الدفعT/T ، L/C.
-
القدرة على العرض10 ~ 20 مجموعة لكل 3 أشهر
Horizontal Stator Winding Inserting Machine for Compressor and Industry Motors with 60-150mm Stator I.D
Compressor Motor Winding Coils Inserting Machine Horizontal Inserting Winding Coils and Paper
The QX series Compressor Motor Winding Coils Inserting Machine features a modular tooling design for quick tooling changes (8 minutes changeover time). Its horizontal winding insertion structure is ideal for large stator production and can be integrated with bovine-eye bearing platforms and Coil Expanding Machines for three-times winding insertion, reducing labor intensity and simplifying loading/unloading.
Technical Parameters
| Model | SMT-QX08 |
|---|---|
| Stator I.D | Φ60~Φ150mm |
| Stator O.D | ≤Φ210mm |
| Stack height | ≤190mm |
| Tooling travel | ≤90mm |
| Compatible wire | Cu / AL |
| Slot number range | 24~48 slot |
| Power supply | 380V/50/60Hz 5Kw |
| Weight | ≈1050Kg |
| Dimension | (L)2380×(W)1180×(H)1700mm |
Key Features
- Automatically inserts winding coils and wedge insulation into stator slots in one operation
- Servo motor-driven coil pushing with pre-pushing function
- Servo motor-driven paper cutting and indexing with adjustable speed
- Adjustable wedge paper length with slot-by-slot, interval slot, or skip slot feeding
- PLC controller with fault detection and diagnosis capabilities
- Pre-feeding paper device ensures consistent paper length
- Low-temperature paper cutting with integrated heating device
- Adjustable coil pushing speed for different wire gauges
- Ergonomic standing operation with two-hand start button
- Quick changeover time of approximately 10 minutes
Component Specifications
- PLC Controller: INOVANCE (China)
- Servo motor system: INOVANCE (China)
- Sensor elements: OMRON (Japan), AUTONICS (Korea)
- Other electrical components: SCHNEIDER (France), IDEC (Japan), Delixi (China)
- Ball screw: HIWIN (Taiwan)
- Bearings: NSK (Japan), SKF (Sweden)
- Pneumatic elements: AirTAC (Taiwan)
- Air source pressure: 0.5~1MPa
- Power: 6.5 Kw (actual configuration may vary)
- Power Source: 3-phase 415V/50Hz
- Weight: ≈1150Kg
- Dimensions: (L)2380×(W)1280×(H)1700mm
Applications
This machine is designed for various induction motors including washing machine motors, air conditioner motors, pump motors, precision servo motors, industrial three-phase motors, fan motors, and new energy motors.
Service and Support
We specialize in developing and manufacturing machines for induction motor production, offering customized solutions when required. Our services include:
- One-year warranty with free technical support and replacement parts
- Overseas after-sales service with rapid response
- Manufacturing technical consulting and turn-key project services
- Production line layout planning assistance
- Staff training and motor cost evaluation services

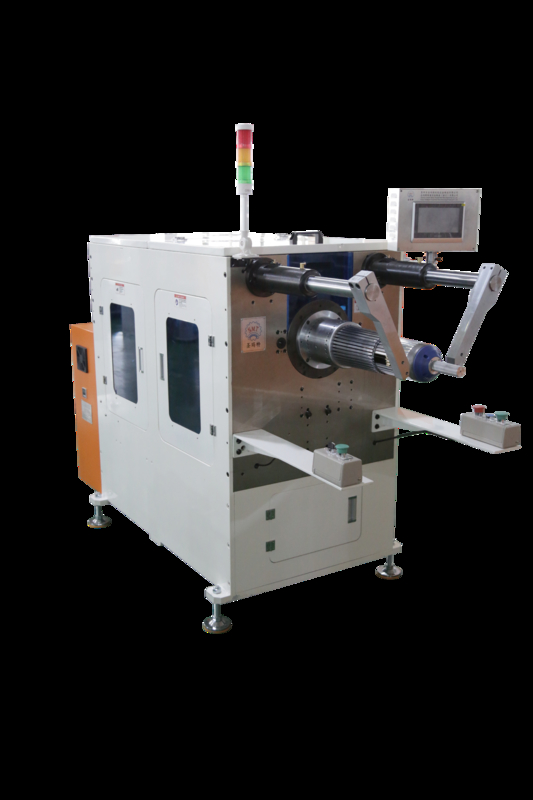

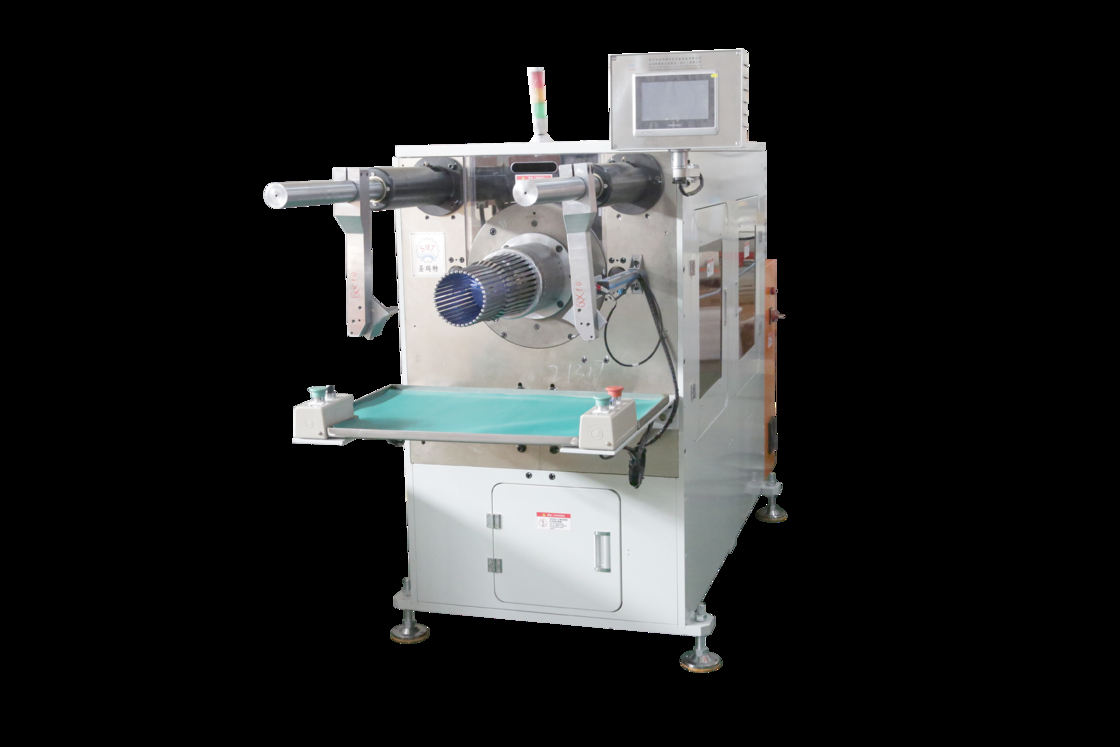

Product Image
