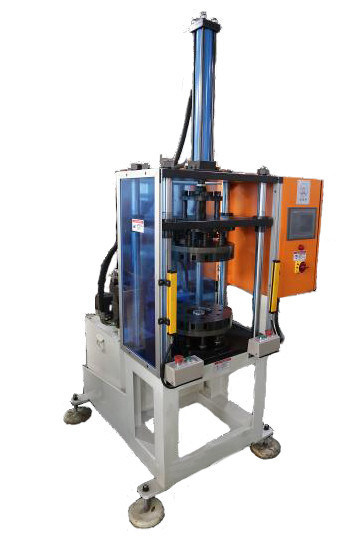

Hydraulic Coil Forming Machine with 30L Displacement and 20-120mm Stack Height for Stator Coil Winding
ملخص المنتج
Fan Motor Stator Semi-Automatic Coil Winding Forming Machinery SMT-ZZ160 Motor Stator Coil Winding Final Forming Machine Copper Wire / Aluminum Wire SMT-ZZ160 This machine expands the inserted coil to leave space for the next one, ensuring efficient multi-layer stator winding insertion. Hydraulic ...
سمات المنتج المخصصة
اسم:
آلة تشكيل لفائف مكبرة محرك كهربائي / سلك النحاس / سلك الألومنيوم
نموذج:
ZZ160
خدمة مخصصة::
متاح
حجم الآلة:
حجم متوسط
خدمة بعد البيع:
المهندسين المتاحة
قوة التشكيل:
النظام الهيدروليكي
ضمان:
سنة واحدة
إزاحة:
30L
إبراز:
30L Displacement Coil Forming Machine,20-120mm Stack Height Stator Coil Winding Machine,40-120mm Stator I.D Electric Motor Winding Equipment
,20-120mm Stack Height Stator Coil Winding Machine
,40-120mm Stator I.D Electric Motor Winding Equipment
الخصائص الأساسية
مكان المنشأ:
الصين
اسم العلامة التجارية:
SMT
إصدار الشهادات:
ISO / SGS Audit
رقم الموديل:
SMT-ZZ160
تداول العقارات
الحد الأدنى لكمية:
1 مجموعة
الأسعار:
قابل للتفاوض
تفاصيل التغليف:
حافظة خشبية مناسبة للنقل البحري.
وقت التسليم:
8-10 اسابيع
شروط الدفع:
T/T ، L/C.
القدرة على العرض:
1pcs / 8-10 أسبوعين
وصف المنتج
Fan Motor Stator Semi-Automatic Coil Winding Forming Machinery SMT-ZZ160
Motor Stator Coil Winding Final Forming Machine Copper Wire / Aluminum Wire SMT-ZZ160
This machine expands the inserted coil to leave space for the next one, ensuring efficient multi-layer stator winding insertion.
- Hydraulic system driven for powerful operation
- PLC programming for precise control
- Tolling expansion slice creates space for successive coil insertion
- Maintains inter-phase insulation paper integrity
- Ideal for multi-layer stator winding applications
Main Technical Specifications
| Model | ZZ160 |
|---|---|
| Stack height | 20-120mm |
| Stator I.D | 40-120mm |
| Stator O.D | ≤190mm |
| Displacement of cylinder | 30L |
| Input | 380V/50/60Hz |
| Power supply | 2.5Kw |
| Machine weight | About 1000kg |
| Machine dimension (LxWxH) | 1200x750x2650mm |
Applications
This machine is designed for various motor types including:
- New energy automobile motors
- Servo motors and generators
- Three-phase motors
- Pump and compressor motors
- Household appliance motors
- Other induction motors
Machine Characteristics
- Hydraulic system with PLC programming
- Adjustable forming stack length via washer changes
- Preserves slot paper and wedge integrity
- Prevents stator deformation and wire enamel damage
- Production capacity ≤13s/set (excluding loading/unloading)
- Primary qualification rate ≥99.5%, final rate ≥99.9%
- Safety grating protection system
- Two-hand simultaneous start for operator safety
OEM/ODM Services
- Custom technical solutions for unique requirements
- Professional after-sale service with door-to-door support
- Domestic and international service network
- 24/7 customer service availability
Production Line Profile
SMT provides comprehensive motor manufacturing services including technical consulting, cost evaluation, manufacturing know-how, staff training, and complete turn-key projects for AC, DC, and BLDC motors.
About SMT
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, 20,000 square meter facility, and ISO9001:2000 certification, we provide complete production line solutions from coil winding to final stator forming.
